GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Kabel mode tunggal serat optik udara

OS2 Kabel mode tunggal serat optik

Tempat asal:

Cina

Nama merek:

OEM/ ODM/ YUEXIANKE

Sertifikasi:

UL/ CE/ ETL/ ROHS/ ANATEL

Nomor model:

GYTW

Hubungi Kami
Minta Kutipan
GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial
Product Details
model nomor:
GYXTW
Perkuat anggota::
Metalik
Bahan penutup::
pe
Menggunakan::
Udara
Tabung longgar::
Kabel Uni-Tube
Selotip air::
Iya
Tipe::
Mode tunggal
Jumlah serat::
2-144 core
Menyoroti:

Kabel mode tunggal serat optik udara

,

OS2 Kabel mode tunggal serat optik

Payment & Shipping Terms
Kuantitas min Order
1000 meter
Harga
negotiable
Kemasan rincian
1000 meter
Waktu pengiriman
3-7Work Day
Syarat-syarat pembayaran
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Menyediakan kemampuan
100000 Meter / Hari
RELATED PRODUCTS
Harga yang bagus GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial on line

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Dapatkan Harga Terbaik
Harga yang bagus Kabel Listrik Optik OPGW Serat Optik 4-48 Core 100 Cross Section Outdoor Composite Overhead Ground Wire Kabel Optik on line Video

Kabel Listrik Optik OPGW Serat Optik 4-48 Core 100 Cross Section Outdoor Composite Overhead Ground Wire Kabel Optik

Dapatkan Harga Terbaik
Harga yang bagus Kabel Serat Optik G657A on line

Kabel Serat Optik G657A

Dapatkan Harga Terbaik
Harga yang bagus 2B6A2 2 Kabel Serat Inti on line

2B6A2 2 Kabel Serat Inti

Dapatkan Harga Terbaik
Hubungi Kami
+86 18925126499
gzjingchang@126.com
Hubungi Sekarang
Product Description

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 48 Cores For Duct / Aerial



Product Description

  • GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
  • We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
  • Both single mode type and multimode types are available.

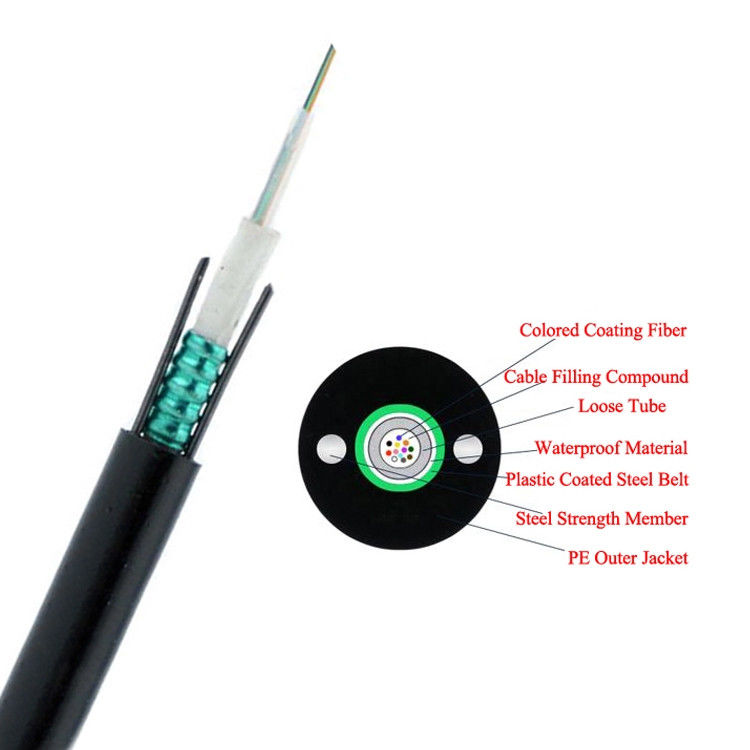

  • Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

Specification



Recommended laying methods Aerial
Allpicable fields Long distance communication and LAN
Properties Water proofing layer providing strong water resistance peformance
Steel tape with PE outer enhancing anti-crush and tensile property of cable
Structure characters Water proofing layer between the steel tape and cable core
Double coated PE corrugated steel tape under PE sheath
Parallel double steel wires as strengthen member

We can design oval cross section and non-metallic structure on

requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc.



Technicial Data



Fiber range 　 Cable weight (kg/km) Min.bending radius(mm) Allowable tension(N) Max.crus loading force(N/1000mm)
Cableouter diameter static dynamic short term long term short term long term
2-12 8.9 90 10times cable diameter 20times cable diameter 1500 600 1000 300
12-24 10.2 110



Features



  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C
